TransMagic
bietet Konvertierung zwischen den unten genannten Dateiformaten.
Zusätzlich kann er als Viewer bzw. Kollaborations-Tool eingesetzt
werden. TransMagic unterstützt die 3D Austauschformate IGES,
STEP, ACIS und Parasolid sowie die Nativformate von CATIA, Pro/E

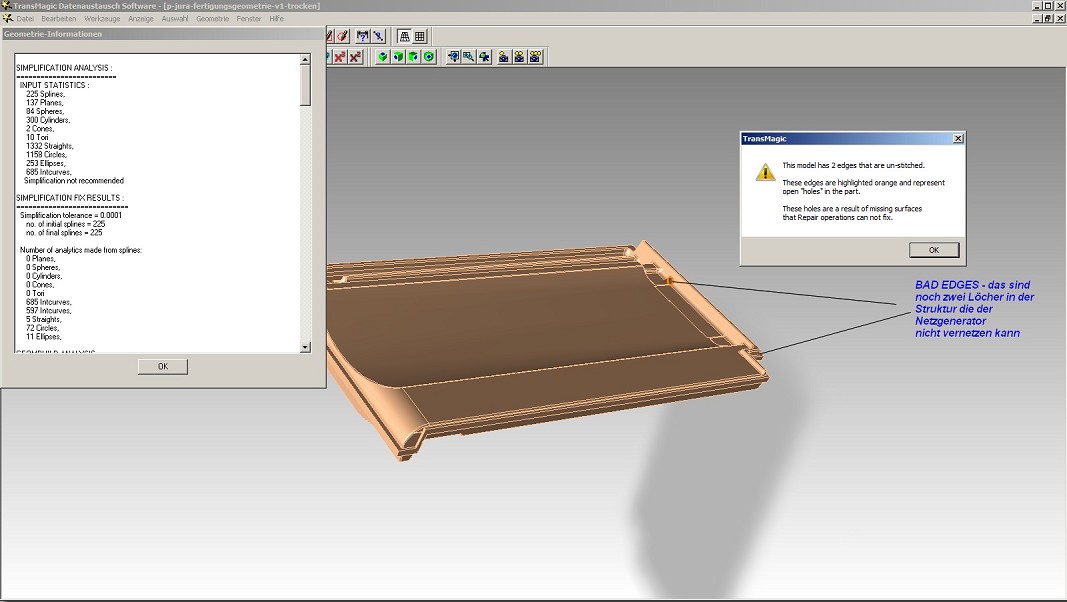

und UG. TransMagic zeichnet sich durch integrierte
Healingfunktionen (light, full, super-repair) und die in der
Plus-Version integrierte CATIA V5 Unterstützung aus. |
|
|
|
 |
CATIA V4, V5
Bidirectional |
|
 |
CATIA V4.1.x u.
4.2.x, V5 bis R8 |
 |
Pro/E Import |
|
 |
Pro/E V17 bis
aktuelle Version |
 |
UG Import |
|
 |
UG bis R18 |
 |
IGES Bidirectional |
|
 |
IGES 4.0, 4.2,
5.2, 5.3 |
 |
STEP Bidirectional |
|
 |
STEP AP203, AP214 |
 |
Parasolid
Bidirectional |
|
 |
Parasolid bis V14 |
 |
ACIS Bidirectional |
|
 |
ACIS bis V10 |
|
